WHAT GOES UP MUST COME DOWN
R5 has one job—get to the top, fast. But for all the glory and fanfare that comes with a summit finish, they’re rarely the only climb of the day. And while a race isn’t usually won on a descent, they can certainly be lost. A climbing bike that can’t carve a hairpin is a bit like a cup of decaf coffee. This is the fourth iteration of the R5, and while weight and stiffness have varied over the years, the handling, poise, and unmatched prowess on a descent have been consistent since day one.

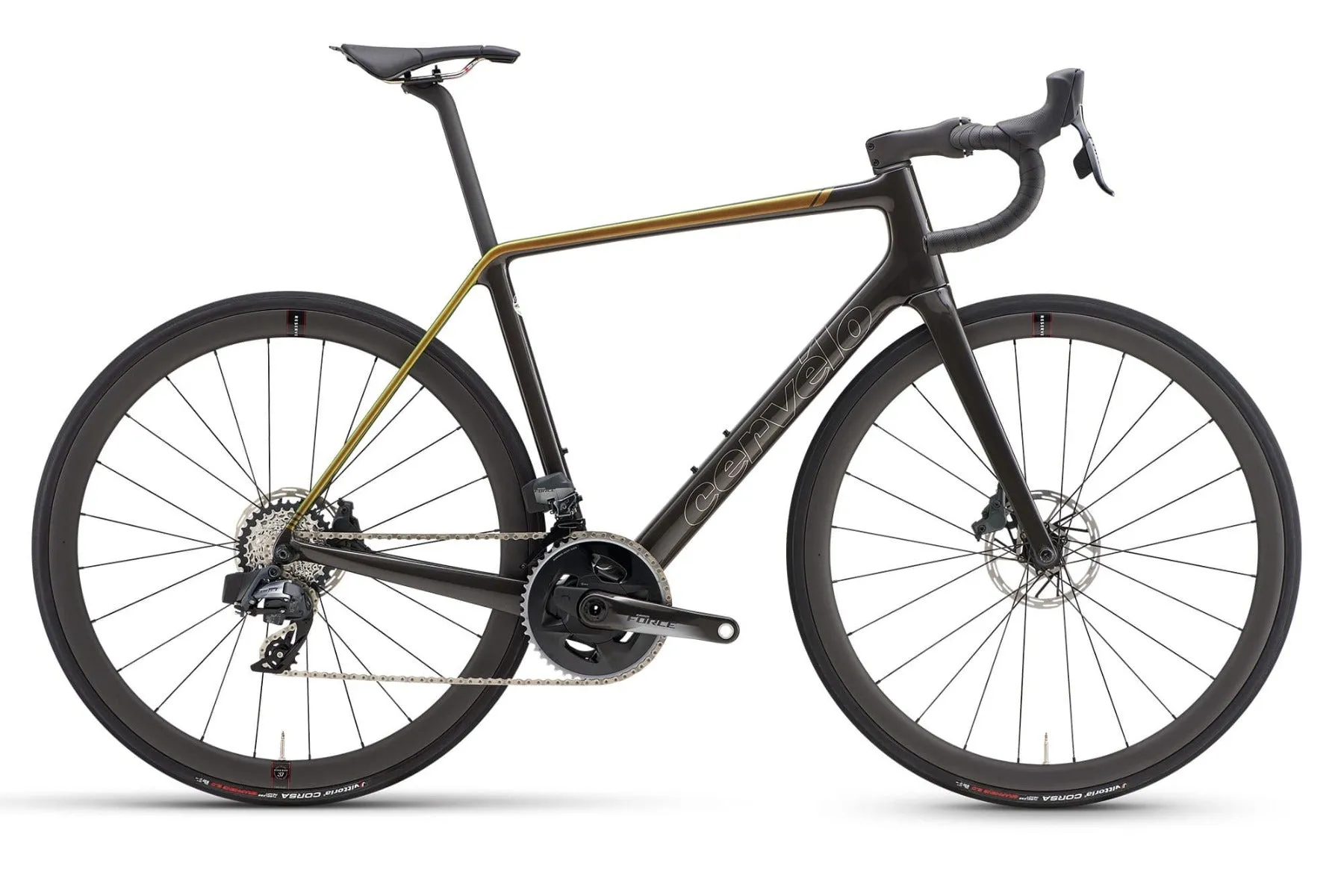

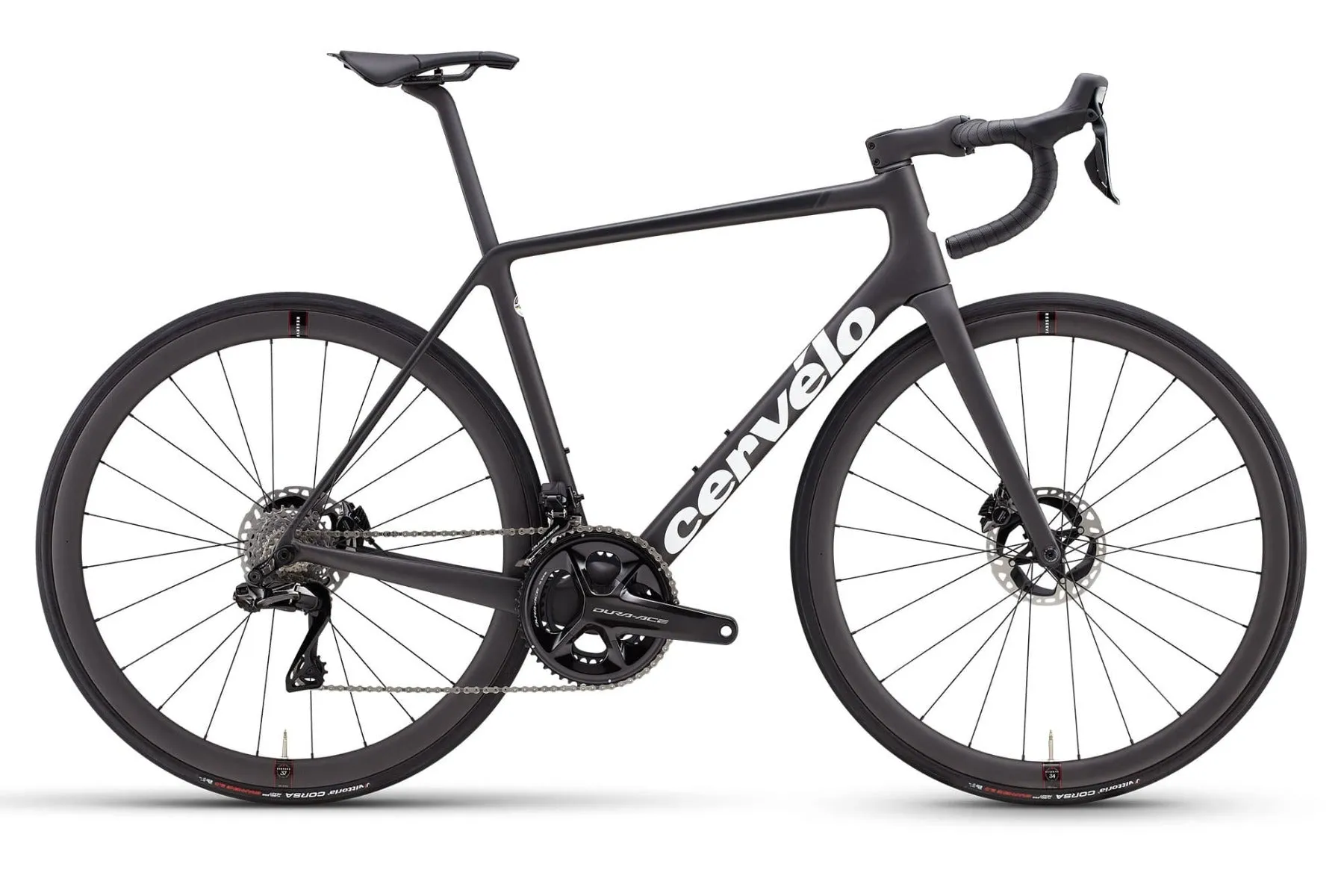

Frameset for the Cervelo R5 2022 Disc Classic Road Bike comes with Lifetime Warranty in Singapore
FASTER IN EVERY DIRECTION
The new R5 frame is 130g lighter than the previous model—a 16% reduction from an already-light frame. And while aerodynamics weren’t a focus with this frame the way they would be on an S5 or P5, bringing the cables inside reduced drag by 25g.
on aerodynamics
Shimano Ultegra R8170 Di2 Disc
The new Shimano Ultegra R8170 Di2 Disc groupset really closes the gap to Dura-Ace. Unless you particularly want to spend more, or need to save that little bit of weight, there is no point in looking past Ultegra R8170. The shifting is smoother across the cassette than previously, and the brakes have improved too. It is just brilliant.
CONFIGURATIONS - Cervelo R5 2022 Disc Classic Road Bike Ultegra Di2 12 Speed
|
Frameset/Fork |
Cervelo All-Carbon Frameset with Cervelo SP24 Seatpost, Tapered R5 Carbon Fork, Cervelo ST31 Carbon Stem, HB13 Carbon Handlebar |
| Groupset | Ultegra Di2 12 spd, Crankset Shimano Ultegra 8100 52/36, Cassette Shimano Ultegra CS-R8100, 12 spd, 11-30, Shimano RT-MT800, 160mm. |
| Wheels | New Reserve 34/37mm DT370, 24h (F), 24h (R), 22.6mm IW (F), 21.6mm IW (R), Center-Lock, Tubeless Ready OR New Reserve 34/37mm Zipp 76/176 HG, 24h (F), 24h (R), 22.6mm IW (F), 21.6mm IW (R), Center-Lock, Tubeless Ready |
Geometry - Cervelo R5 2022 Disc Classic Road Bike Ultegra Di2 12 Speed
| Size | 48 | 51 | 54 | 56 | 58 | 61 |
| Reach | mm | 363 | 371 | 380 | 389 | 398 | 407 |
| Stack | mm | 497 | 522 | 547 | 572 | 597 | 622 |
| Head Tube Angle | 71° | 72° | 73° | 73° | 73° | 73° |
| Front Center | mm | 574 | 576 | 578 | 594 | 611 | 628 |
| Bottom Bracket Drop | mm | 74.5 | 74.5 | 72 | 72 | 69.5 | 69.5 |
| Head Tube Length | mm | 93 | 114 | 137 | 163 | 192 | 218 |
| Top Tube Length | mm | 515 | 531 | 548 | 564 | 581 | 598 |
| Seat Tube Angle | 73° | 73° | 73° | 73° | 73° | 73° |
| Standover Height | mm | 695 | 724 | 755 | 778 | 800 | 824 |
| Trail | mm | 57.3 | 57.3 | 57.3 | 57.3 | 57.3 | 57.3 |
| Wheel Size | 700c | 700c | 700c | 700c | 700c | 700c |
| Fork Offset | mm | 57.5 | 51.5 | 45.5 | 45.5 | 45.5 | 45.5 |
| Wheelbase | mm | 972 | 974 | 977 | 994 | 1011 | 1028 |
| Chainstay Length | mm | 410 | 410 | 410 | 410 | 410 | 410 |
